Operation and installation

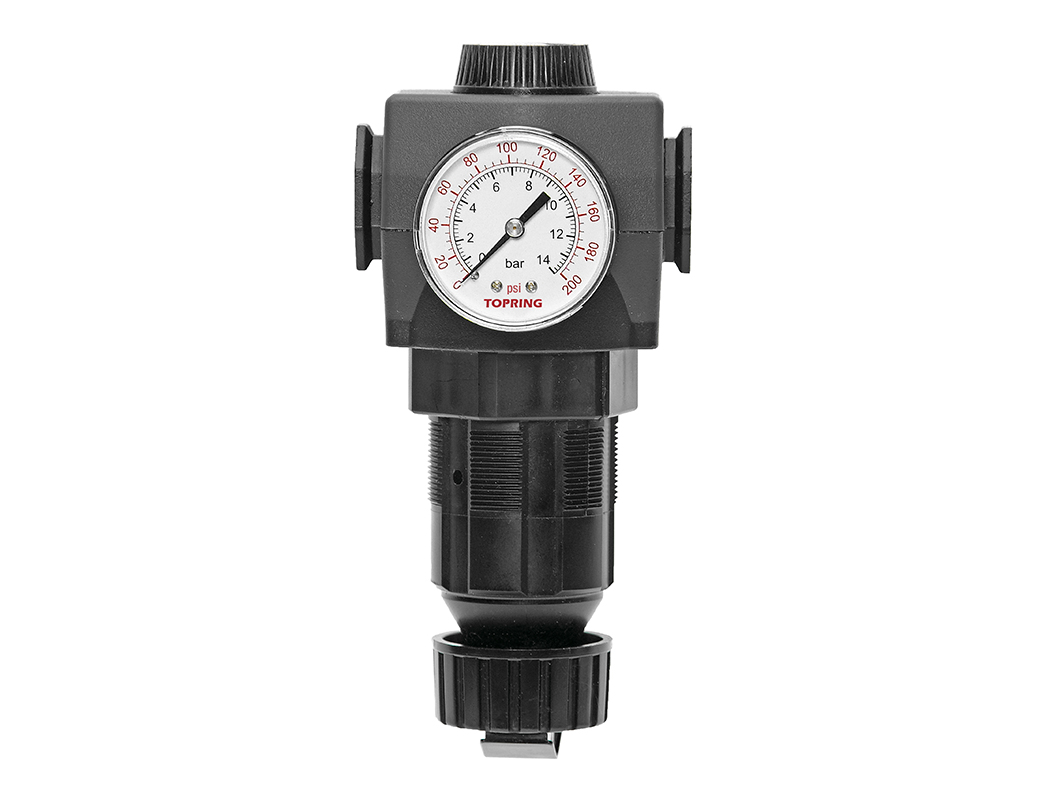

WHERE TO INSTALL A REGULATOR
Install the regulator on each pipe where applications and air tools requires different working pressure.
Always install the regulator downstream of a filter and upstream of a lubricator.
Can be installed vertically or horizontally.
Always install regulator with the arrows pointing to the tool or application.
