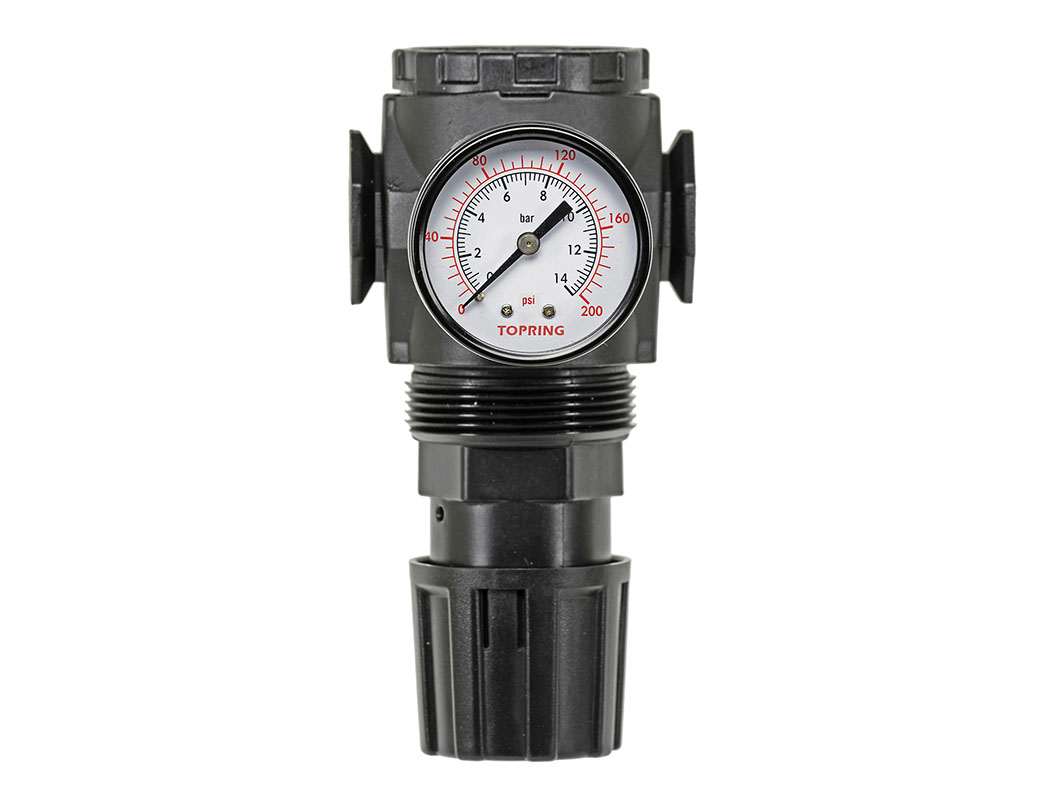

Regulator 1/2 with gauge modulair 300

Technical specifications and certifications

• Port Size: 1/2 (F) NPT
•Maximum Airflow at 100 PSI: 1/2: 60 SCFM
•Ambient/Media Temperature: 4 to 80 °C
•Maximum Working Pressure: 300 PSI
•Pressure Range: 0-125 PSI
•Panel Mounting: 52 mm hole required
•Valve: Brass
•Valve Cap: Nylon
•Seals: Nitrile

Product Description

Features and benefits

• Modular or inline mounting
• High performa nce
• Superior pressure regulation — diaphragm type regulator
• Self relieving design
• Push-pull adjusting knob
• Front mounted clamping design with encapsulated screws
