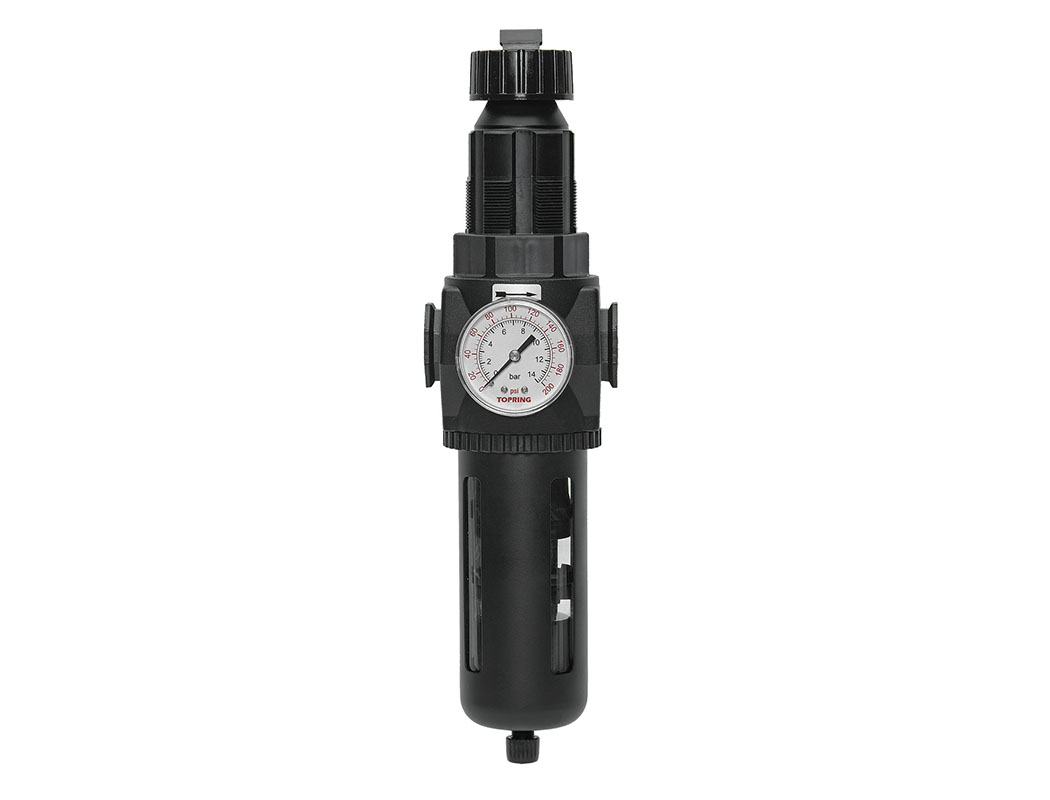

Filter/regulator 1/2 manual drain with standard bowl and gauge modulair 400

Technical specifications and certifications

• Port Size: 1/2 (F) NPT
• Ambient/Media Temperature:
Standard Bowl: 4 to 52 °C
• Inlet Pressure:
Standard Bowl with Manual Drain: 0-150 PSI
• Outlet Pressure: Adjustable up to 125 PSI
• Panel Mounting: 52 mm hole required
• Drain: Manual
• Bowl Capacity: 270 ml
• Seals: Nitrile

Product Description

Features and benefits

• Modular or inline mounting
• High flow capacity
• Designed to remove particulate material down to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Superior pressure regulation — diaphragm type regulator
• Self relieving design
• Push-pull adjusting knob
• Front mounted clamping design with encapsulated screws
