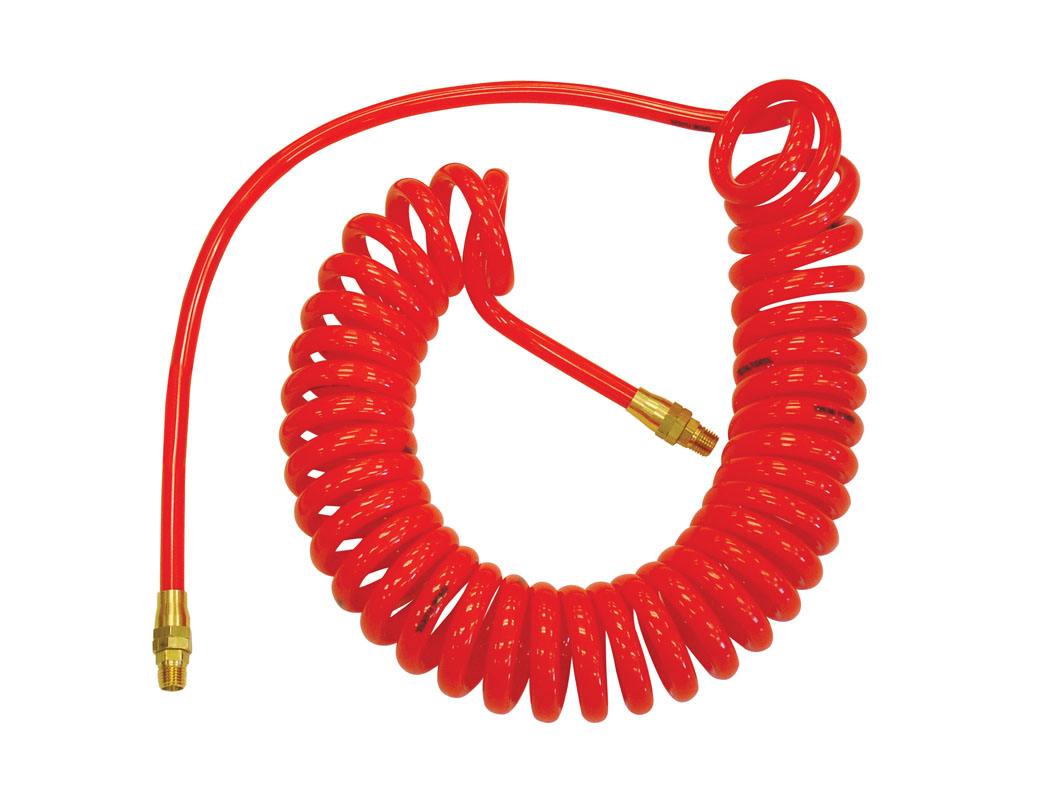

Coil polyurethane hose 1/4 x 15′ x 1/4 (m) npt flexcoil red

Technical specifications and certifications

• Color: Red
• Hose I.D.: 1/4 in
• Coil O.D.: 2.1 in
• Total Length: 15 ft
• Working Length: 12 ft
• Fittings (M): 1/4 NPT
• Maximum Working Pressure: 140 PSI at 23 °C
• Maximum working pressure decreases as air temperature increases
• Working Temperature Range: -40 to 70 °C
• Durometer: Shore A 98
• Maximum Working Length: 80 % of total length

Material(s):
• Polyurethane (ether-based)

Product Description

Features and benefits

• Ether-based polyurethane properties offer longer lifespan
• Offers little resistance to pull and automatically retracts
• Superior memory over a wide temperature range
• Excellent kink resistance
• Highly abrasion and moisture absorption resistance
• Lightweight, 25 % lighter than rubber hoses
• Superior elasticity and flexibility compared to nylon hose
• Smaller coil diameter – more compact and space-saving design
• Heavy-duty brass fittings at both ends
• Fittings with leak-tight seals resistant to loosening caused by vibrations
• Full flow swivel fittings for maximum directional flexibility
• Straight 20 inches and 4 inches tails for tangle-free tool operations
• Silicone-free

Operation and installation

TECH TIP
It is important to choose the proper interior hose diameter according to the airflow required for the application
3/8 I.D. offers 3 times more flow than 1/4. I.D.

Applications

• Assembly lines, air tools and work stations, automotive repair and body shops
